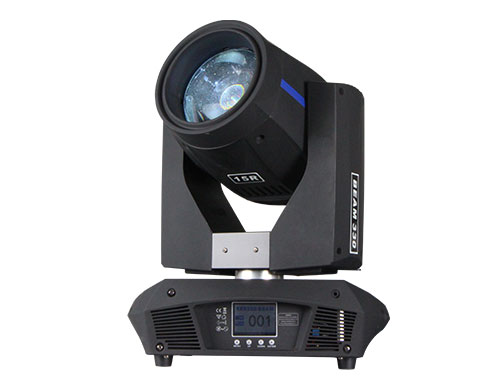

LM-B330 15R moving head beam light

Technology Parameter

LM-B330 is a super sharply & high brightness moving head beam light.  It has ndependent 8, 16, 24 facet prism .The unique design of optic route and structure makes beam the most uniformity shining with a spectacle of brilliance.

This fixture has 20 DMX CH, 14 colors,  fixed with LCD touch display, the Pan/tilt is driven by 3-phase motor, moving fast and noiselessly (Pan 540°/2.5 sec. Tilt 260°/1.5 sec.). The rated power will be decreased 40% to protect the lame’s source when the shutter is closed. It will become the spotlight of the performances no matter in the concert, theatre, wedding, hotel, disco.

OPTITCAL SYSTEM

Philips lamp 330W 15R

Reflect bowl is coated with multi-layer, efficiency and reflective coating.

Good heat-protecting glass, good dissipation

Beam angle 4.8 (Including frost & prism)

Electronic focusing

DISPLAY SYSTEM

Display mode 16 million pixel LCD touch screen, with sleep mode function

Lamp’s life & device using time is displayable.

With Automatic error tested function

Two control mode: touch-wheel mode and non-contact, convenient to operate and read menu

CONTROL SYSTEM

International standard DMX512.

20 control channels.

DMX, random, auto, voice and sleep mode.

Using high-tech constant current board, 36V / 12V voltage.

Built-in high -quality magnetic components ensure stable signal transmission.

Data line antifreeze, in line with CE20 / 22 standards.

DATA INTERFACE

1. 3-pin male and female connector.

2. 3-pin combines 5-pin male and female connectors.

POWER SYSTEM

500w, power fluctuations (± 50W) works normally.

AC110－240V/50-60HZ.

Using high-tech constant current power board, first-class brand PCB components, SMT processing technology, AC voltage mode.

Ground wiring in accordance with international standard.

Built-in high -quality lighting power filter to ensure stable signal transmission.

Power line antifreeze, in line with CE20 / 22 standards.

POWER INTERFACE

1. Three-pin male and female data interface, dual hand in hand power interface

2. Three-pin and five-pin male and female data interface, one single power connector.

STROBE SYSTEN

Independent double shutter device, 0-14 times / s

0-100% linear dimming.

The lamp power is automatically reduced by 40% when it turn off in 5 seconds

Remote control switch and boot light function for bulb, default as remote control.

COLOR SYSTEM

mported Italian specialty high temperature materials, Germany's high-tech coating technology.

8 colors+open.

Semi- color, full-color, single-color gradients, changeable fast forward and reverse direction rotating rainbow effect.

Automatic error correction at any angle with hall, magnet positioned.

GOBO SYSTEM

13 metal gobos + open, adjustable beam angle, enabling water, shake, slow-fast rotation effect.

8 rotating gobos+open, rotation angle can be adjusted

Automatic error correction at any angle with hall, magnet positioned .

PRISM SYSTEM

Prism Material:heat-protecting glass. Germany's high-tech coating technology.

Prism structure: Three independent prism design.8/16/24 facet prism

COOLING SYSTEM

Lamps materials: Excellent aluminum material, good heat dissipation and light weight.

Thermal protection: Built-in overheating protection

ROTATION SYSTEM

XY motor: Fast and quiet 3-phase motor.

XY position: Encoder& Hall components position and advanced scanning memory function.

Pan:540°（16/32 bit),

Tilt 270 °（16/32 bit),

LIGHTING DESIGN

1.Metal Plate: Creative high quality raw material

2.Housing design: user-friendly, nice looking, tough and neat.

DEMENSION

Body size:470x470x580 mm

N.W: 21 kg

package: Flight case or carton
